Kenwei High Percision Leak Proof Multihead Weigher For Small Particle And Powder
The leak-proof multi-head weigher is a combination scale developed to prevent side leakage during the weighing of various small particles, such as rice, chicken essence, monosodium glutamate, white granulated sugar, and other materials. Compact weigher design that reduces the products drop time: increased speed and minimum product breakage/damage and high accuracy technology lowest give-away,with a special deep U vibrating disk is used to effectively avoid side leakage of materials and reduce the loss of materials.
Features
1. Special sensors with high precision and high standard are used.
2. Program recovery function can reduce operation failures and support multi-segment weight calibration
3. Prevent congestion of puffed food, it can adapt the function of filling in proper order
4. Linear amplitude can be adjusted independently in the running
5. The filling amplitude can be adjusted manually or automatically according to the characteristic of the material.
6. Store 100 sets of parameter settings, realize various material requirements, help menu, and facilitate learning and use.
Mechanical character
1. A multi-month feeder can dispense products into each linear feeder pan effectively.
2. The deep U design of linear vibration plate is leak proof for the material of fine grained material.
3. Mold-making process and uniform design standards contribute to better interchangeability for spare parts.
4. Module system is stable and maintenance is low.
5. Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy.
6. No need tools when disassemble the parts to clean
Technical specification
| Model | JW-A10 | JW-A14 |
| Identify Code | A10-1-4 | A14-1-4 |
| Weighing Range | 20-1000g | 20-1500g |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 65P/M | 120P/M |
| Hopper Volume | 1.6L/2.5L |
| Control Panel | 7'' Touch Screen |
| Options | Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/1000V/50/60Hz/10A | 220V/1500W/50/60Hz/12A |

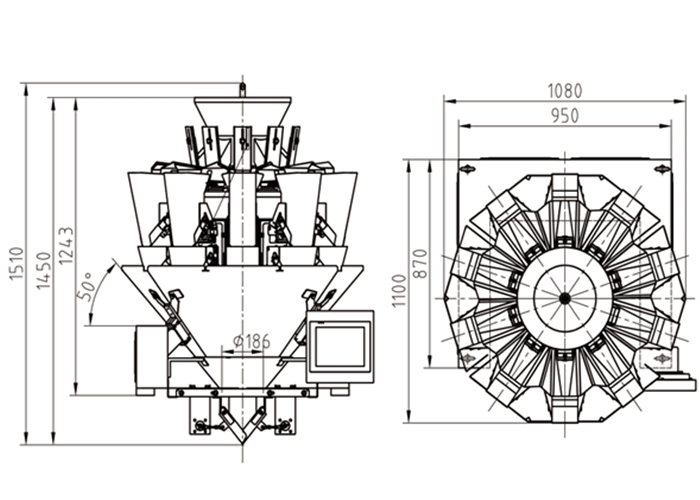

| Packing Dimension(mm) | 1620(L)x1100(W)x1110(H) | 1700(L)x1100(W)x1265(H) |
| Gross Weight | 380kg | 490kg |
Application
It is suitable for weighing small granules such as rice, sugar, fine tea, detergent powder, etc.
FAQ
Q1: How to know which one packing machine is suitable for us?
You can first tell business representatives which equipment you want to know, what material is the product, how many grams to weigh, and the range of accuracy and speed requirements. Our engineers then recommend suitable packaging machines based on these data and product characteristics.
Q2: How to operate it?
Many languages are available for global markets. There are not only detailed instructions but also machine videos for reference learning.
Q3: Why we should choose your company?
We have many years of industrial production and management experience, professional R & D, sales, after-sales team. It can perfectly solve all the problems that customers encounter from purchase to sale.
Q4: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process.
Q5: What's your payment way?
T/T by our bank account directly.
Q6: How about the delivery and after-sales service?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small multi-head weigher, For the large-scale machine, it takes longer. Warranty:2years(Electric accessories) and free lifetime maintenance.
If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem.
