24 Head Weigher For Weighing Snack Food With Three Layer Hopper
The fourth-generation three-layer 24-head multi head weigher has 24 hoppers and separate main vibration plates. The single machine can be used for more than 2 types (up to 6 types) of mixed material formulas. When the mixed-mode works, it will be automatically compensated and suitable for each nut, candy, potato chips, and other casual snacks and puffed food.
Features
- Adopt special sensor with high precision and high standard.
- Intelligent fault alarm prompt, more convenient maintenance.
- High-speed asynchronous discharge function, effectively prevent materials from blocking.
- Automatic compensation will be performed in the mixing model.
- Modular circuit board, realize intelligent multiple sampling stable mode, weighing more accurately.
Mechanical character
- The universal hopper weighing unit enhances the interchangeability of parts of the whole machine.

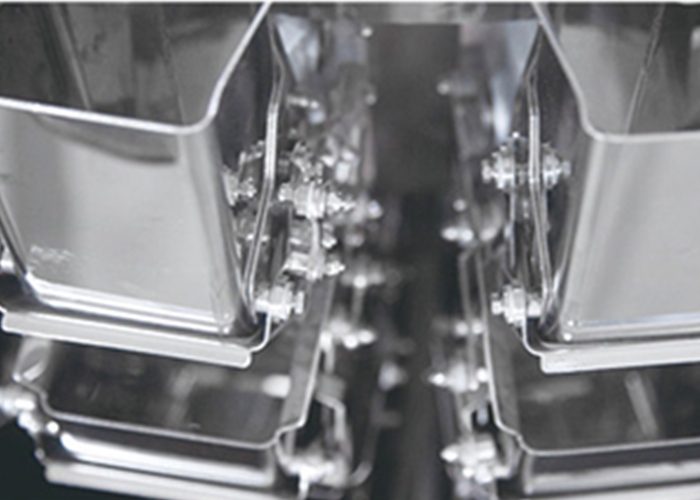

- With memory hopper, it can realize temporary storage of weighing materials, increase the combination probability, and effectively improve the combination accuracy.
- Adopt separate main vibrating disk, a single machine can be used for more than 2 kids (maximum 6 kinds) of mixed material formula application.
- Adopt an independent main vibration machine to control the feeding thickness of different materials.
- The integrated welding of the mouth-shaped chassis and the middle seat greatly enhances the strength of the machine and makes the hopper's stability time shorter.
Technical specification
| Model | JW-A24 |
| Identify Code | A24-4-1 |
| Weighing Range | 12-1000g |
| Accuracy | X(0.5) |
| Max Speed | 60x6P/M |
| Hopper Volume | 0.5L |
| Control Panel | 10.1” Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 110/220V/2800W/50/60Hz/13A |
| Packing Dimension(mm) | 2100(L)x1480(W)x1130(H) |
| Gross Weight | 650kg |
Application
It’s suitable for weighing seeds, peanuts, nuts, almonds, raisins, candy, pistachio, potato chips, dumplings, and another granule, sheet, strip, round shape material.
Adopting well-known Japanese and German brand load cells. Key components such as hoppers, linear pans, waterproof cover are made by high-precision molds, which contributes to high consistency and interchange-ability. The circuit board design adopts the industrial-grade design scheme, the industrial-grade material, and the manufacturing technology from the chip selection to the PCB design and the protection. The standard touch screens use an LCD screen of 50,000-hours-life, which adopts the immunity standard higher than the EC general standard industrial environment, and achieves a high-level design of 4kV.
Having a high-quality team with more than 30% professional technicians, which ensures our comprehensive capacity from R&D, manufacturing, marketing, installation, technical training to after-sales service for the complete automatic weighing packaging system.
